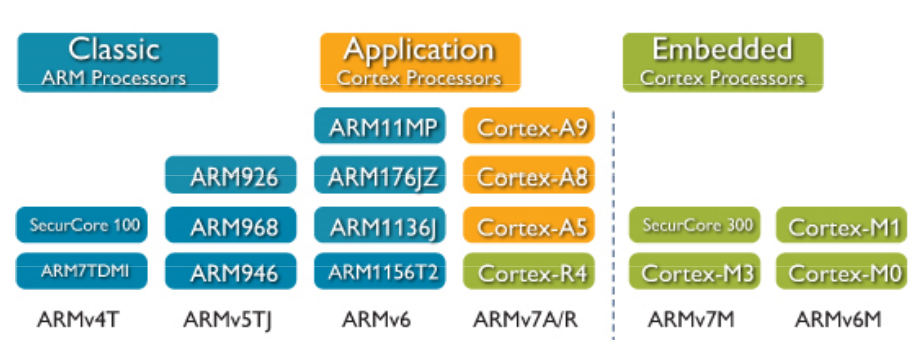

Processor Modes
The ARM has six operating modes:
- User (unprivileged mode under which most tasks run)
- FIQ (entered when a high priority (fast) interrupt is raised)
- IRQ (entered when a low priority (normal) interrupt is raised)
- Supervisor (entered on reset and when a Software Interrupt instruction is executed)
- Abort (used to handle memory access violations)
- Undef(used to handle undefined instructions)
ARM Architecture Version 4 adds a seventh mode:
System (privileged mode using the same registers as user mode)
The Registers
- ARM has 37 registers in total, all of which are 32-bits long.
1 dedicated program counter
1 dedicated current program status register
5 dedicated saved program status registers
30 general purpose registers
- However these are arranged into several banks, with the accessible bank being governed by the processor mode. Each mode can access
a particular set of r0-r12 registers
a particular r13 (the stack pointer) and r14 (link register)
r15 (the program counter)
cpsr (the current program status register)
and privileged modes can also access
a particular spsr (saved program status register)
Register Organisation
Accessing Registers using ARM Instructions
- No breakdown of currently accessible registers.
- All instructions can access r0-r14 directly.
- Most instructions also allow use of the PC.
- Specific instructions to allow access to CPSR and SPSR.
- Note : When in a privileged mode, it is also possible to load / store the (banked out) user mode registers to or from memory.
The Program Status Registers (CPSR and SPSRs):
Condition Code Flags:
N = Negative result from ALU flag.
Z = Zero result from ALU flag.
C = ALU operation Carried out
V = ALU operation oVerflowed
Interrupt Disable bits.
I = 1, disables the IRQ.
F = 1, disables the FIQ.
Mode Bits
M[4:0] define the processor mode.
T Bit (Architecture v4T only)
T = 0, Processor in ARM state
T = 1, Processor in Thumb state
